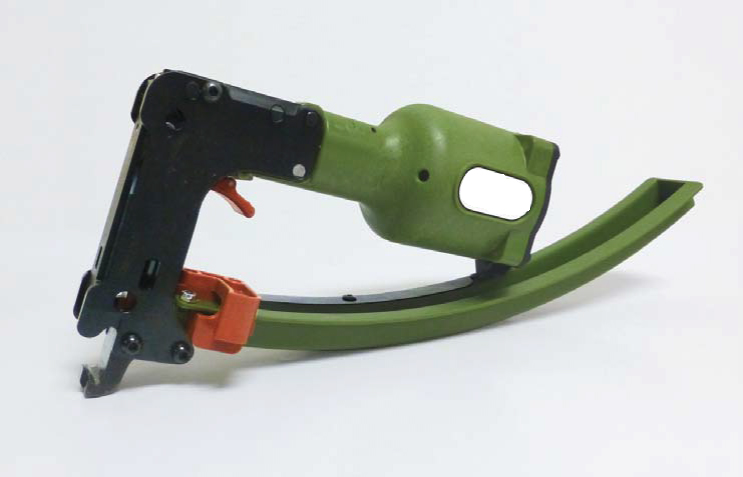

| The Eclipser clip tool takes KHF ECF series clips available in materials from bright, galvanized, stainless and aluminum. The relatively low air consumption allows for use with standard compressors. The tool is designed for long service life and easy maintenance through carefull engineering. Benefits of using this tool can be seen immediately in less man hours on the job, lower occurances of installer injuries and lower per connection prices.. | |
|---|---|
 |
|
Compatible Clip Types |
|||
|---|---|---|---|
KHF P/N |
Hartco P/N |
Tool P/N |
Clips / Box |
| 64A18SG | CLP-15G | 2000-1020/1929 | 10,340 |
| 71A18SG | CLP-13G | 2000-1020/1929 | 9,400 |
| 72E18S | CLP-20 | 2000-3236 | 6,110 |
| 74H18S | CLP-23 | 2000-6080 | 4,230 |
| 76A18R | CCP-26 | 2500-1020 | 14,500 |
| 80F23S | CLP-312 | 2000-6181 | 4,320 |
| 80H23S | CLP-3 | 2000-6181 | 3,600 |
| 80H23SG | CLP-3G | 2000-6181 | 3,600 |
| 88A22R | CCP-32 | 2500-1022 | 12,300 |
| 88H23S | CLP-4 | 2000-6181 | 3,200 |
| 90F18SG | CLP-2412G | 2000-6082 | 3,948 |
| 90H18S | CLP-24 | 2000-6082 | 3,290 |
| 90H18SC | CLP-24C | 2000-6082 | 3,290 |
| 90H18SG | CLP-24G | 2000-6082 | 3,290 |
| 101F23SAL | CL-34NAL | 2000-4157T | 3,360 |
| 101H23SG | CLP-34G | 2000-6183 | 2,800 |
| 101H23S | CLP-34 | 2000-6183/6189 | 2,800 |
| 101H23SAL | CL-34AL | 2000-6187T | 2,800 |
| 101H23SC | CLP-34C | 2000-6183 | 2,800 |
| 110E25SS4 | CLP-35SS4 | 2000-6189E | 2,886 |
| 110E25SS3 | CLP-35SS3 | 2000-6189E | 2,886 |
| 110H25S | CLP-36 | 2000-6189 | 2,220 |
| 110H25SAL | CL-36AL | 2000-6187T | 2,220 |
| 135H31S | CL-38T | 2000-6788 | 1,550 |
| Notes: | Clip Type: S = Strip Form R = Roll Form Material Type: G = Galvanized AL = Aluminum S = Stainless Special Feature: C = Cushion | ||
-
